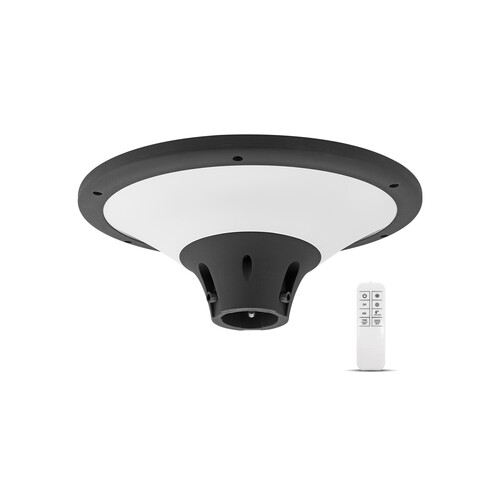

HYBRID - POLE HEAD
CODE: SJH40
- Operation with Solar Power + 230V Grid
- Automatic switching from solar power to mains voltage
- Designed for mounting on a Ø60 mm pole
- Ideal for lighting streets, gardens, courtyards, pedestrian areas, playgrounds
- Equipped with motion detector and dusk sensor for automatic activation
- No operating costs
- High-efficiency photovoltaic panel
- LED panel with lenses designed to enhance brightness
- With remote control
Hybrid Operation The unit operates primarily using energy supplied to the battery by the solar panel. When the battery charge drops below 10%, the 230V AC power supply automatically takes over, ensuring continuous lighting.
Protection rating: IP65, suitable for outdoor use
Housing: Made of ABS and polycarbonate, resistant to weather, UV rays, and impacts (IK07)
Power supply: 100–277V AC - 50/60Hz
Surge protection: 10kV
Lithium battery type LiFePO4: 115.2 Wh, 9.6 V, 12,000 mAh (replaceable)
Solar panel: Monocrystalline, 23 W, 18 V
LED type: 240 x SMD 2835
Beam angle: Asymmetrical 140° x 70°
Selectable white color temperatures: 3000°K - 4000°K
Power consumption: 40W
Luminous flux: 6600 lm
Color rendering index (CRI): >80
Motion sensor: 180° detection angle
Detection range: 8 m
Dusk sensor: activates at: >20 lux
LED lifespan: 50,000 hours
Mounting height: 4–6 m
Operating temperature: -20 to +60°C
Battery autonomy: 13 hours (when fully charged)
Operating cycles: >5,000
Insulation class: I
Charging time: 9 hours
Dimensions: 506.5 x 305.5 x 251 mm
Weight: 4.82 kg
