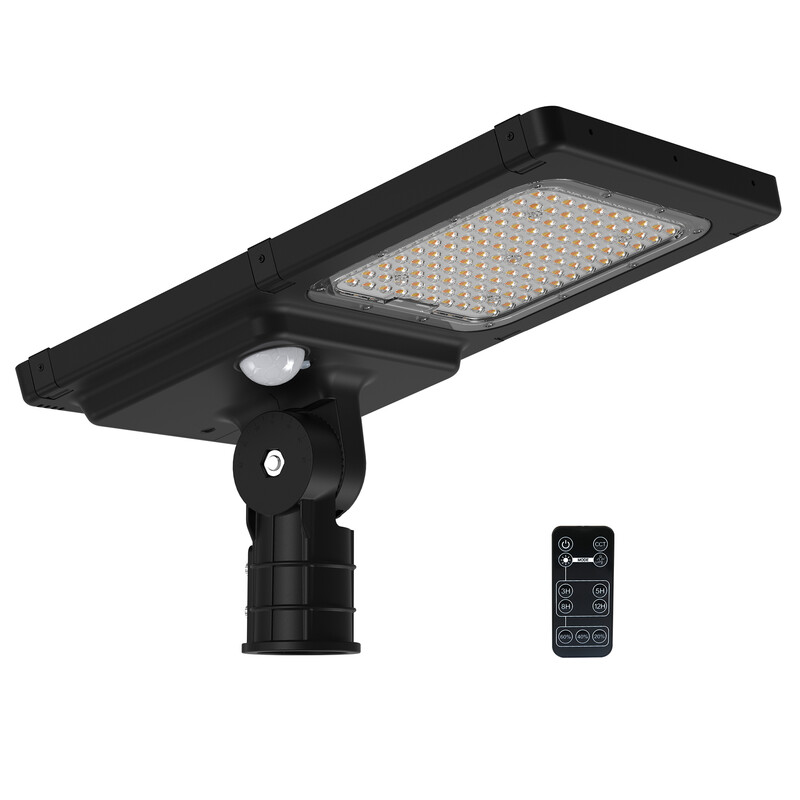

HYBRID - POLE HEAD
CODE: SJH60
- Operation with Solar Power + 230V Grid
- Automatic switching from solar power to mains voltage
- Designed for mounting on a Ø60 mm pole

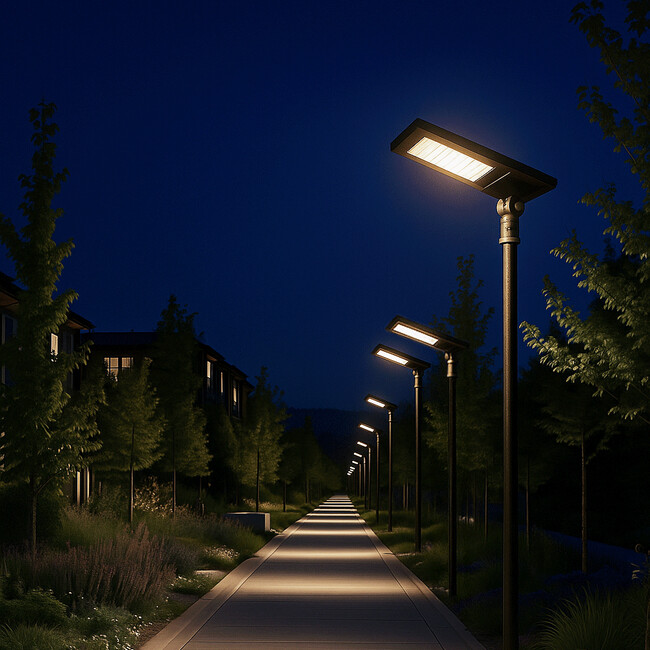

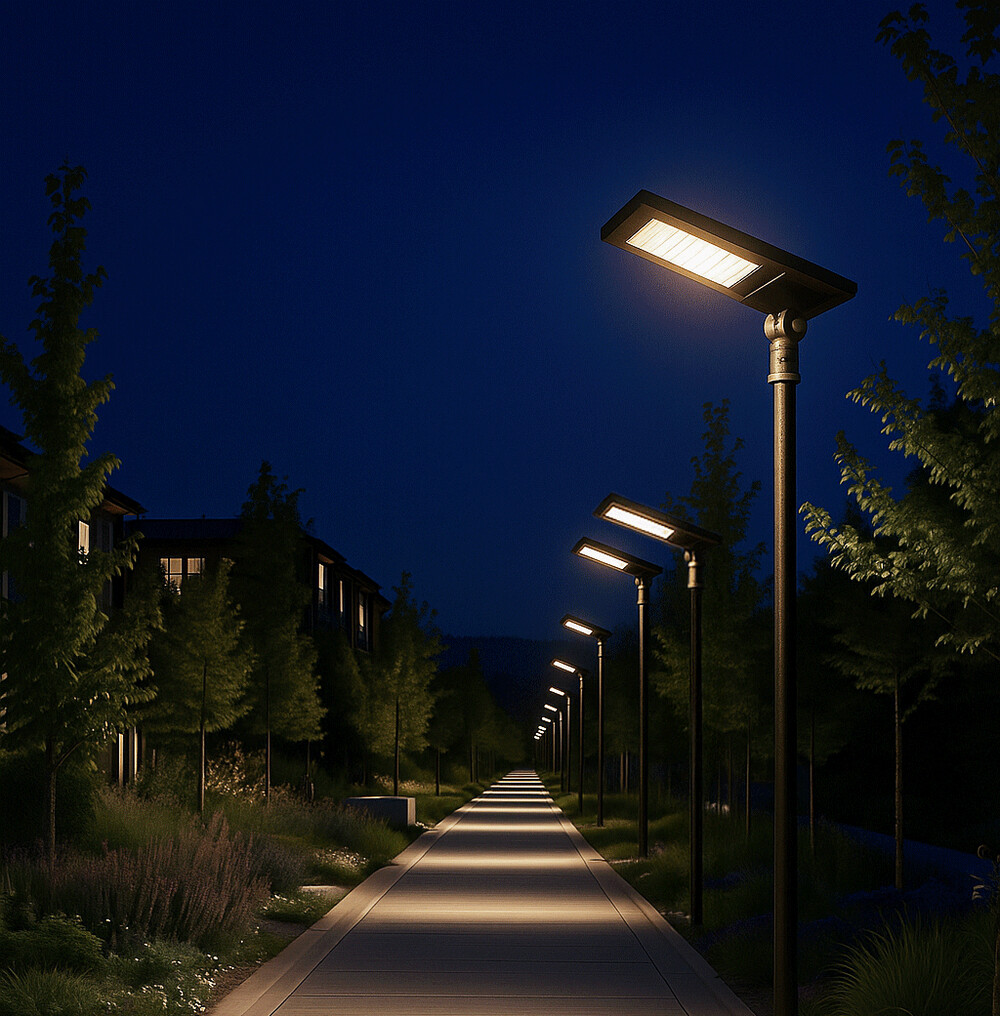

- Ideal for lighting streets, gardens, courtyards, pedestrian areas, playgrounds
- Equipped with motion detector and dusk sensor for automatic activation
- No operating costs
- High-efficiency photovoltaic panel
- LED panel with lenses designed to enhance brightness
- With remote control
Hybrid Operation The unit operates primarily using energy supplied to the battery by the solar panel. When the battery charge drops below 10%, the 230V AC power supply automatically takes over, ensuring continuous lighting.
Protection rating: IP65, for outdoor use
ABS and polycarbonate body, weatherproof, UV-resistant, and impact-resistant (IK07)
Power supply: 100-277V AC - 50/60Hz
Surge protection: 10KV
Lithium battery type LiFePO4: 153.6 Wh 12.8 V 12,000 mAh (replaceable)
Solar panel: monocrystalline 33 W 19.5 V
LED type: 360 x SMD 2835
Beam angle: asymmetric 140° x 70°
2 selectable shades of white: 3000°K-4000°K
Power: 60W
Luminous flux: 9600 lm
Color rendering index: >80
Detector: 180° detection angle
Detection distance: 8 m
Twilight sensor: < 20 lux
Average LED life: 50,000 hours
Mounting height: 4-6 m
Operating temperature: -20 +60°C
Battery life: 11.5 hours (fully charged)
Operating cycles: >5,000
Insulation class: I
Charging time: 9 hours
Dimensions: 648.5 x 305.5 x 251 mm
Weight: 6.05 kg
