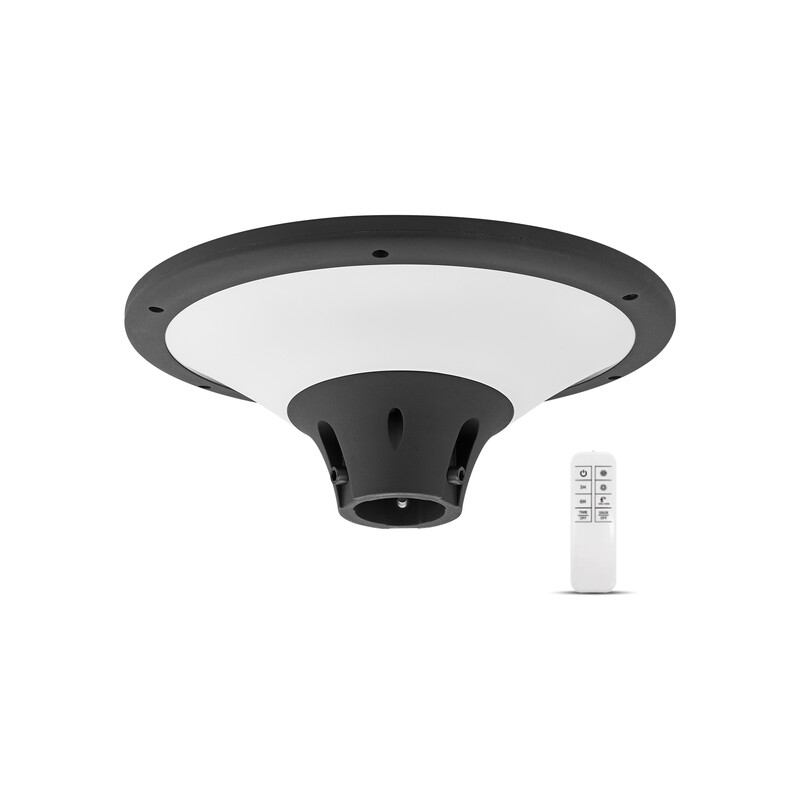

HYBRID LED STREET LIGHT - POLE TOP
CODE: SJTH20
- Operation with Solar Power + 230V Grid
- Automatic switching from solar power to mains voltage
- Designed for mounting on a Ø60 mm pole
- Light dissusion 360°
- Equipped with motion detector and dusk sensor for automatic activation
- No operating costs
- High-efficiency photovoltaic panel
- With remote control
Hybrid Operation
The unit operates primarily using energy supplied to the battery by the solar panel. When the battery charge drops below 10%, the 230V AC power supply automatically takes over, ensuring continuous lighting.
Protection rating: IP65, suitable for outdoor use
Housing: Made of aluminium, resistant to weather, UV rays, and impacts (IK07)
Power supply: 220–240V AC - 50/60Hz
Surge protection: LN 500V, LN/PE 1Kv
Lithium battery type LiFePO4: 51,2 Wh 6,4 V 8.000 mAh (replaceable)
Solar panel: Monocrystalline, 12 W, 9 V
LED type: 186 x SMD 2835
Beam angle: 110°
Power consumption: 15W
Luminous flux: 1500 lm
Color rendering index (CRI): >70
Motion sensor: 360° detection angle
Detection range: 5-6 m
Twilight sensor: activates at <20 lux
LED lifespan: 30,000 hours
Mounting height: 1-4 m
Operating temperature: 0 +45°C
Battery autonomy: 10 hours (when fully charged)
Operating cycles: >12,000
Insulation class: I
Charging time: 8 hours
Dimensions: Ø 380 x 130 mm
Weight: 3 kg
