Led squared ceiling lamp 3 in 1

IP54
CRI 80

CODE: TRITONQ SMART

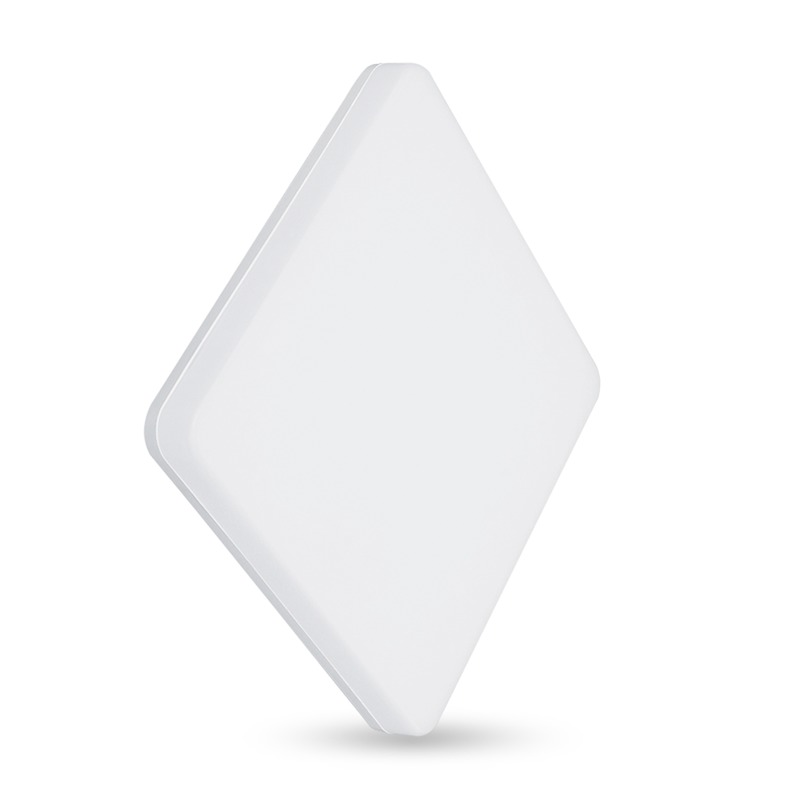

Innovative squared ceiling lamps with LED technology.
Equipped with presence detector and battery.
3 selectable functions:
• Colour change (3000 - 4000 - 5700°K).
• Automatic light on with presence detector.
• Automatic intervention in case of blackout.
The essential design and “minimal” lines allow a very wide use of these ceiling lamps, which can be installed on the ceiling or wall.
Plate with high luminous LEDs for a uniform diffusion of light on the entire surface.
White polycarbonate body with high mechanical resistance.
High diffusion satin diffuser in polycarbonate.
“No Flicker” IC integrated driver.
Equipped with rear bracket for wall mounting.
Junction box for electrical connections.
Change colour selector.
Power supply: 230V ~ 50Hz
Colour rendering: >80
Luminous efficiency: 100 lm/W
Power factor: >0.5
Timer: 15 sec - 5 min
Twilight: from 15 to 200 lux
Adjustment of delected area: 1 - 7 m (default: 2m)
Ni.cd buffer battery
Average charging time: 12 hours
Average intervention time: 1 sec
Flux in emergency: 200 lm
Autonomy: 1 hour
Average life: 30,000 hours
Operating temperature: -20°C + +40°C
Insulation class: II
Beam angle: 120°
Protection degree: IP54, for outdoor use
Shockproof: IK08
Photo-biological safety: RG 0
Power supply: 230V ~ 50Hz
Colour rendering: >80
Luminous efficiency: 100 lm/W
Power factor: >0.5
Timer: 15 sec - 5 min
Twilight: from 15 to 200 lux
Adjustment of delected area: 1 - 7 m (default: 2m)
Ni.cd buffer battery
Average charging time: 12 hours
Average intervention time: 1 sec
Flux in emergency: 200 lm
Autonomy: 1 hour
Average life: 30,000 hours
Operating temperature: -20°C + +40°C
Insulation class: II
Beam angle: 120°
Protection degree: IP54, for outdoor use
Shockproof: IK08
Photo-biological safety: RG 0

TAG

triton

Technical data

Articles and details

Article Dimensions Total consumption Protection degree Color Luminous flux Angle of diffusion
TQS28 280 x 280 x 50 mm 18 W IP54 3000-4000-5700°K 2.100 lm 120°
TQS33 330 x 330 x 50 mm 24 W IP54 3000-4000-5700°K 2.900 lm 120°
