Signal lamps

Presentation Technical data
Facebook Twitter LinkedIn Mail Whastapp

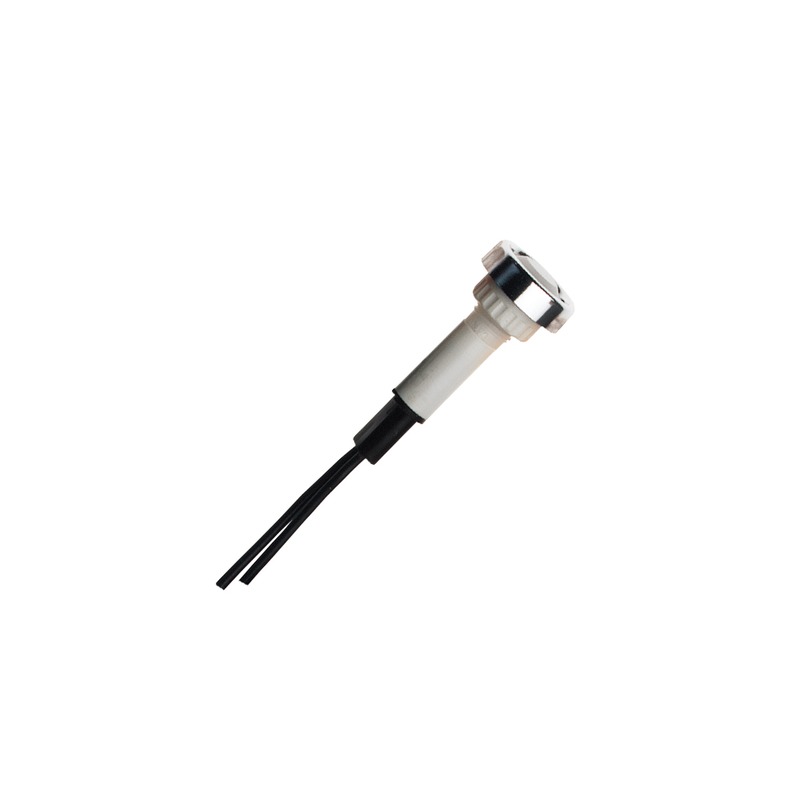

Signal lamp

CODE: SERIE S.2233

Chromium plated lens
With PVC cables 0,50 mm² - length 200 mm
High lens
Neon: 110-220-380 V
Fluorescent green: 110-220-380 V
Incandescence: 6-12-24 V
Chromium plated lens
With PVC cables 0,50 mm² - length 200 mm
High lens
Neon: 110-220-380 V
Fluorescent green: 110-220-380 V
Incandescence: 6-12-24 V

Technical data

Articles and details

Code Description Base Volt Diameter Color
S.2233.VF.380 Signal lamp a filo 380 10 fluorescent green
S.2233.VF.220 Signal lamp a filo 220 10 fluorescent green
S.2233.VF.110 Signal lamp a filo 110 10 fluorescent green
S.2233.V.380 Signal lamp a filo 380 10 green
S.2233.V.24 Signal lamp a filo 24 10 green
S.2233.V.220 Signal lamp a filo 220 10 green
S.2233.V.12 Signal lamp a filo 12 10 green
S.2233.V.110 Signal lamp a filo 110 10 green
S.2233.T.380 Signal lamp a filo 380 10 transparent
S.2233.T.24 Signal lamp a filo 24 10 transparent
S.2233.T.220 Signal lamp a filo 220 10 transparent
S.2233.T.12 Signal lamp a filo 12 10 transparent
S.2233.T.110 Signal lamp a filo 110 10 transparent
S.2233.R.380 Signal lamp a filo 380 10 red
S.2233.R.24 Signal lamp a filo 24 10 red
S.2233.R.220 Signal lamp a filo 220 10 red
S.2233.R.12 Signal lamp a filo 12 10 red
S.2233.R.110 Signal lamp a filo 110 10 red
S.2233.A.380 Signal lamp a filo 380 10 amber
S.2233.A.24 Signal lamp a filo 24 10 amber
S.2233.A.220 Signal lamp a filo 220 10 amber
S.2233.A.12 Signal lamp a filo 12 10 amber
S.2233.A.110 Signal lamp a filo 110 10 amber
