Led lamps G4 base in epoxy resin glue

IP20

CRI 80

CODE: SERIE SG4

Where to buy it
Share
Info
Technical datasheet

LED bulbs with innovative coating of thermally conductive silicone material. This coating provides mechanical protection from shocks, increases heat dissipation, while keeping the maximum luminous efficiency of the LEDs.
Power supply: 12V through a DC power supply or toroidal, ferromagnetic driver.

Average life: 30,000 hours
Insulation class: II
Protection degree: IP20, for indoor use

Technical data

Articles and details

Article	Supply voltage	Dimensions	Base	LED Nr	Total consumption	Color	Luminous flux	Angle of diffusion
SG424.WW	12V	10x35 mm	G 4	24	2W	warm white 3.000°K	110 lm	360°

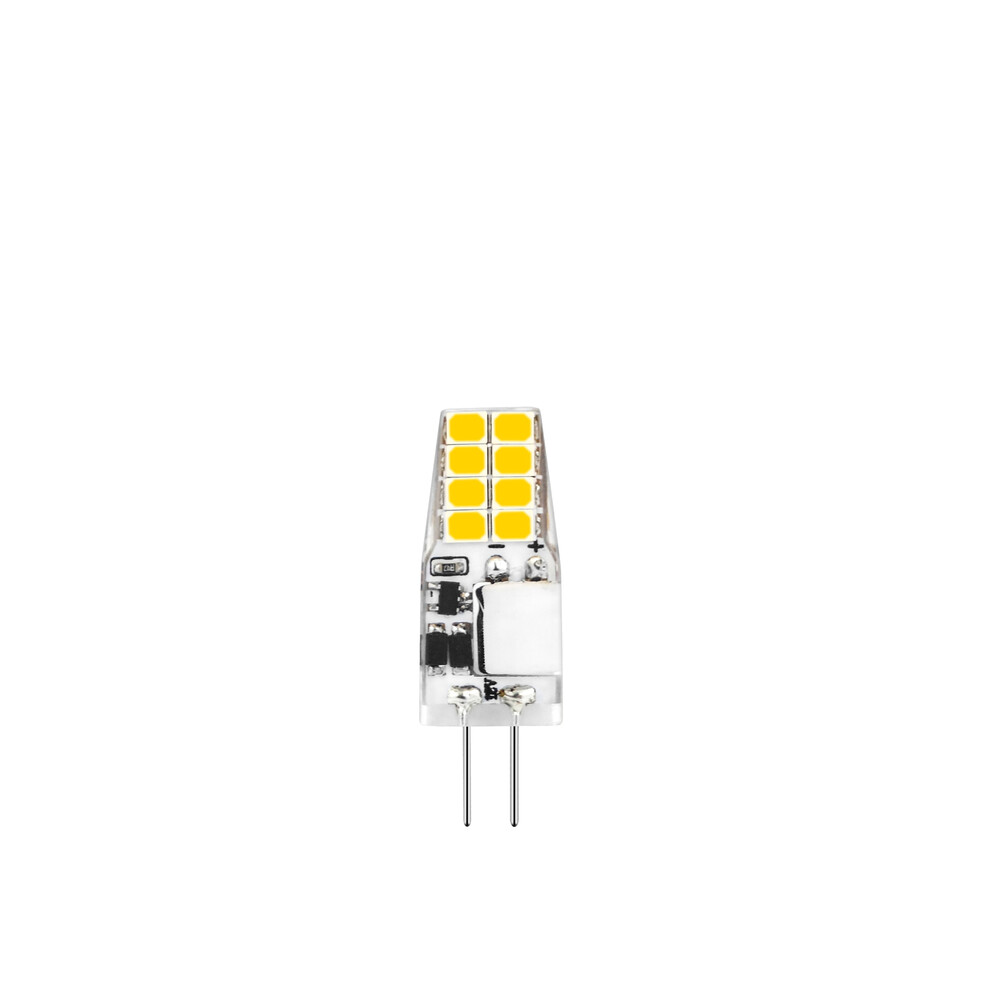

SG448.WW	12V	12x33 mm	G 4	48	3W	warm white 3.000°K	180 lm	360°
SG457.WW	12V	16x42 mm	G 4	57	3W	warm white 3.000°K	180 lm	360°
