WATERPROOF LOW CONSUPTION STRIP

IP67

24V

CRI 80

CODE: BLR.425

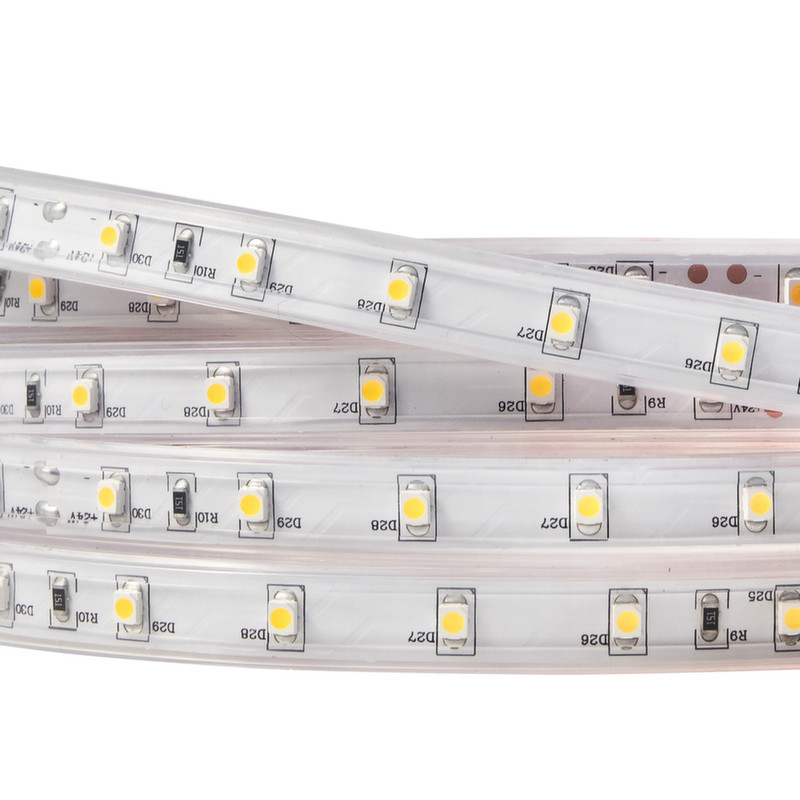

Led strip for professional use
Shock resistant silicone sheath insulated at the ends.
Given the considerable heat production it is necessary to mount the strip on a material with good thermal dissipation (eg metal); we recommend our PA series aluminum profiles. Bag package comprising:
• 5 m reel
• 2 power cable

60 LED/m
Beam angle: 120°
Minimum cutting section: 100 mm
Extendible max: 5,000 mm
Dimmable
Colour rendering: >80
Protection degree: IP67, for outdoor use
Working temperature: -25 +60°C
Storage temperature: -40 +80°C
Rear adhesive: 3M
Material: copper 2 layer
Substrate colour: white
Average life: 25,000 hours
Led operative life: L70B50

TAG

Technical data

Articles and details

	Article	Led colour	Colour temp.	Volt	Led type	Led/m	W/M	LM/M	LM/W	IP
-	BLR.425.W	Bianco Freddo	6500°K	24V DC	3528 SMD	60	4,8	270	56	67
	BLR.425.D	Bianco Diurno	4000°K	24V DC	2835 SMD	60	5	559	112	67
	BLR.425.3W	Bianco Caldo	3000°K	24V DC	2835 SMD	60	5	518	103	67
	BLR.425.XW	Bianco Extra Caldo	2700°K	24V DC	3528 SMD	60	5	488	101	67
