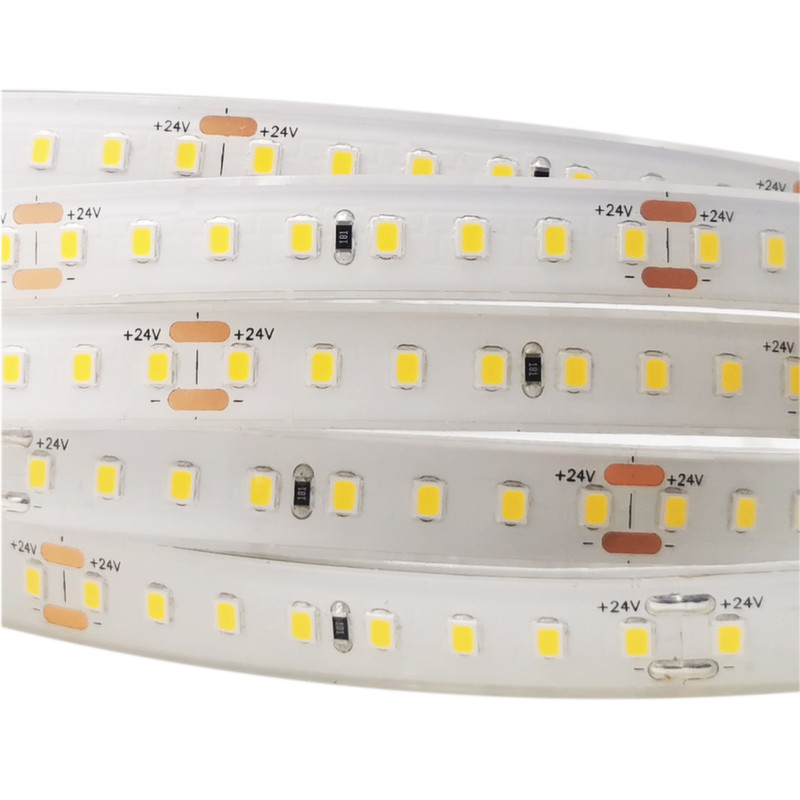

HIGH LIGHT OUTPUT / LOW CONSUMPTION STRIP

IP67

24V

CRI 90

CODE: FLR.765

Professional led strip.
Transparent silicone sheath, walkable, impact resistant.
Due to the high heat output, the strip must be mounted on a material with good thermal dissipation (eg metal); we recommend our aluminum PA Series profiles.
Bag package comprising:
• 5m reels
• 1 power cord

2835 SMD Led - 128 LED/m
Selected bin colour
Beam angle: 120°
Minimum cutting section: 62.5 mm
Extendible max: 5,000 mm
Dimmable
Colour rendering: >90
Protection degree: IP67, for outdoor use
Working temperature: -25 +45°C
Storage temperature: 0 +60°C
Rear adhesive: 3M
Material: copper/polyamide 2 layer
Substrate colour: white
Average life: 30.000 hours @T55°C
Led operative life: L70B20

TAG

Technical data

Articles and details

Article	Led colour	Colour temp.	Volt	Led type	Led/m	W/M	LM/M	LM/W	IP
FLR.765.D	Bianco Diurno	4000°K	24V DC	2835 SMD	128	6,5	944	145	67
FLR.765.3W	Bianco Caldo	3000°K	24V DC	2835 SMD	128	6,5	912	140	67
FLR.765.XW	Bianco Extra Caldo	2700°K	24V DC	2835 SMD	128	6,5	890	137	67
